CeramCool® Linear-1K

Ceramic linear Heat-Sinks for active single-channel liquid Cooling

The CeramCool® Linear-1K is an extended liquid heat-sink available with 120 mm axial connections or 143 mm rear-side connections made of alumina or aluminum nitride ceramic.

Ceramic linear Heat-Sinks for active single-channel liquid Cooling

The CeramCool® Linear-1K makes it possible to design efficient, easily scalable liquid-cooled single-channel systems. Typical applications include LED rows or transistors in TO-220 semiconductor housings.

CeramCool® Linear-1K

  • All sides of the heat-sink can be metalized
  • Suitable for low installation depths
  • Ideal for heat-sink arrangement in rows
  • Standard construction length of 120 or 143 mm
  • Additional construction lengths on request

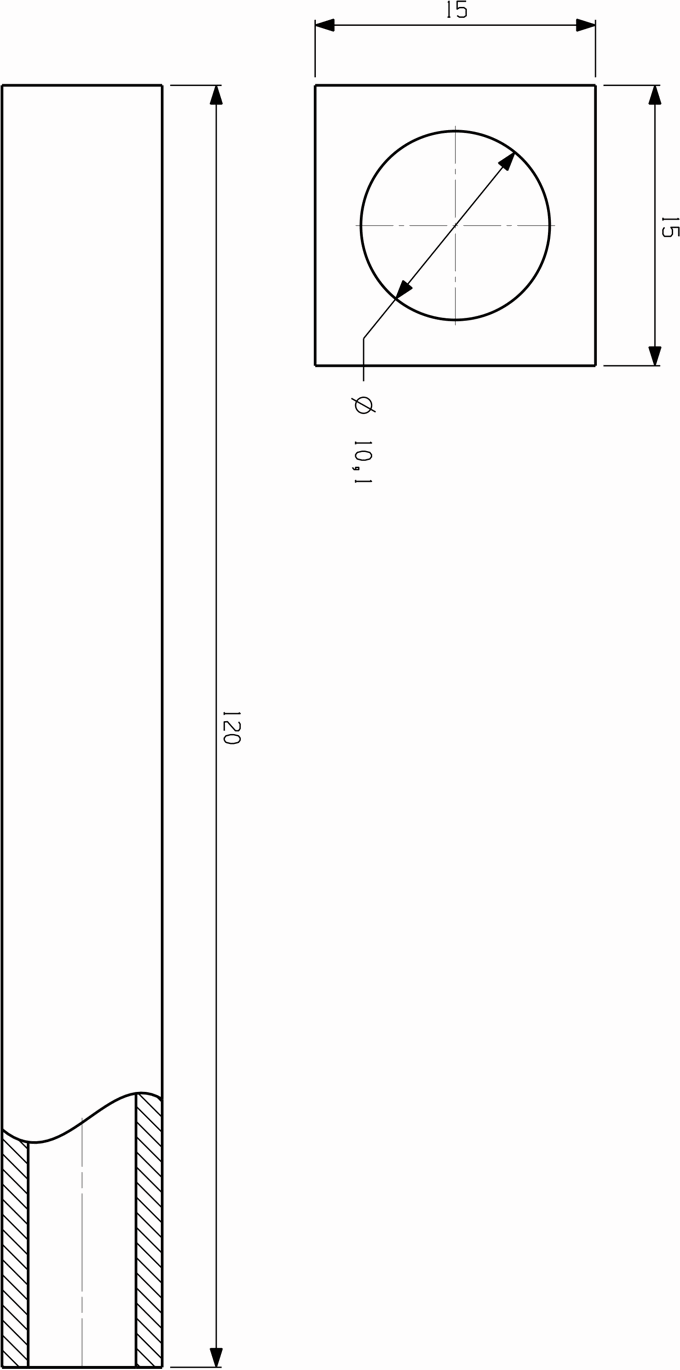

CeramCool® Linear-1K-120
Technical Data


General

  • Dimensions: 120 x 15 x 15 mm
  • Cooling connections: side
  • Rth : 0.01 K/W
  • R'th : 0.184 Kcm2/W @ 100 l/min

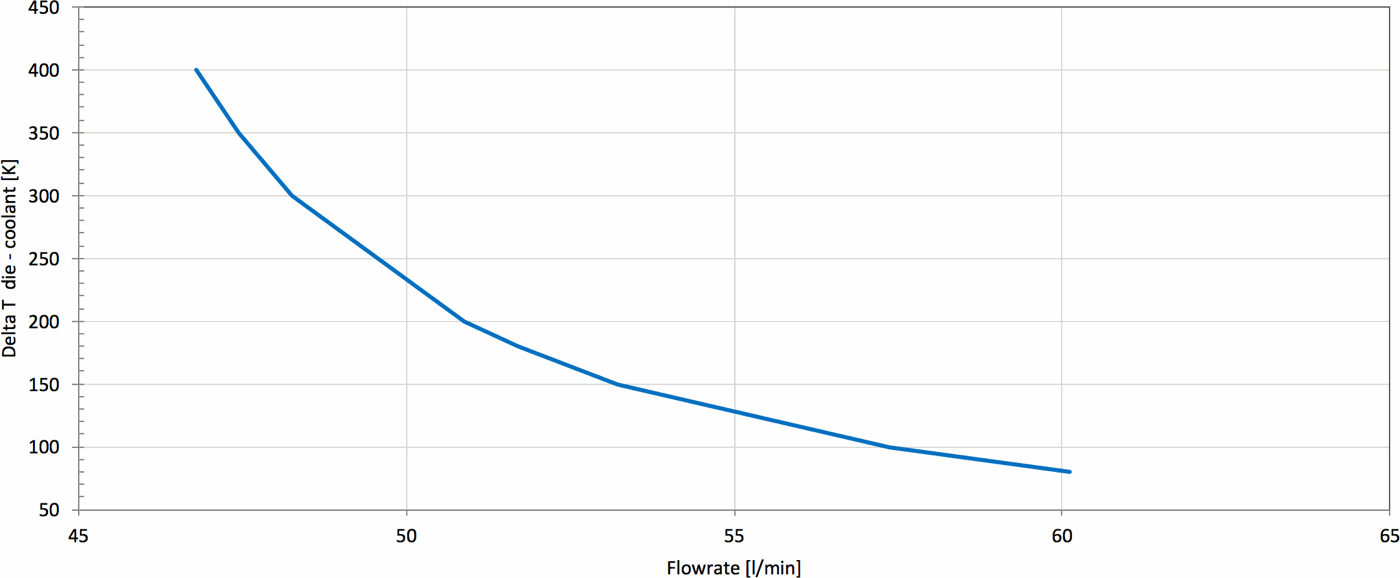

Characteristic Curve Temperature Flow Rate

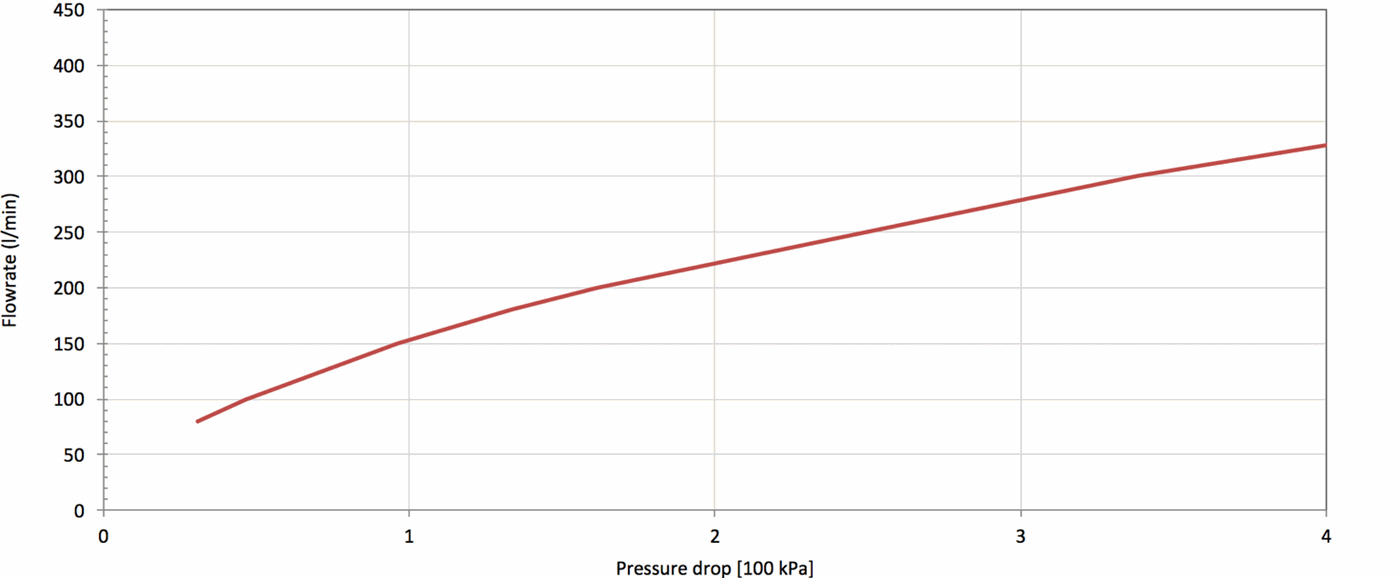

Characteristic Curve Temperature Flow Rate Pressure Drop

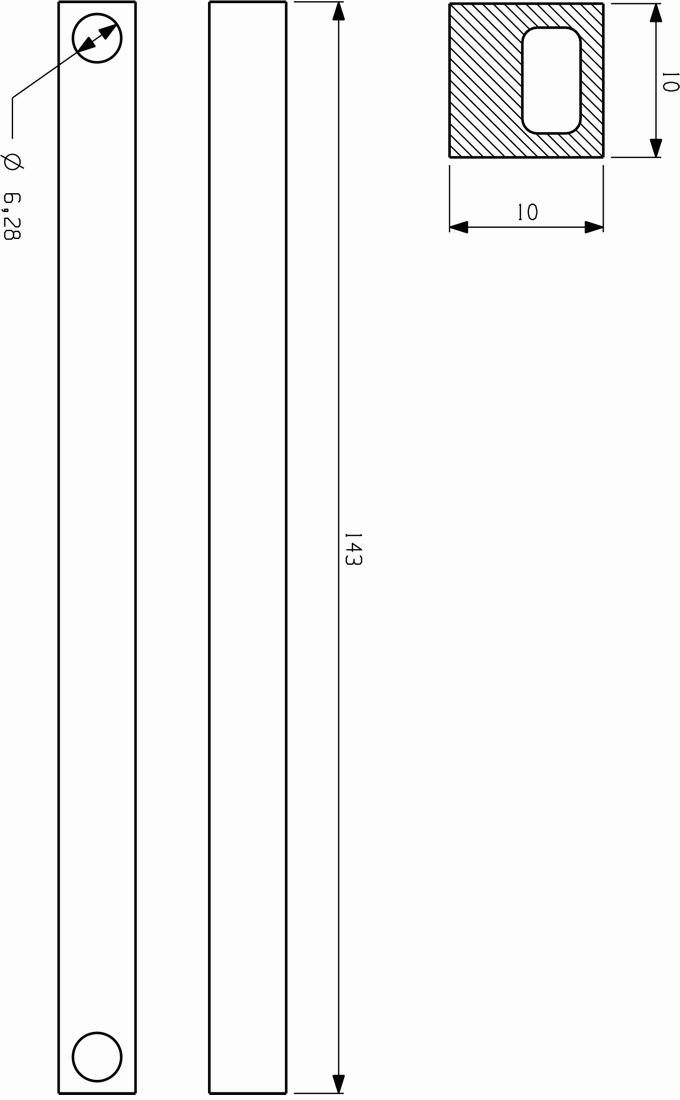

CeramCool® Linear-1K-143
Technical Data


General

  • Dimensions: 143 x 10 x 10 mm
  • Cooling connections: rear side
  • Rth : 0.009 K/W
  • R'th : 0.126 Kcm2/W @ 50 l/min

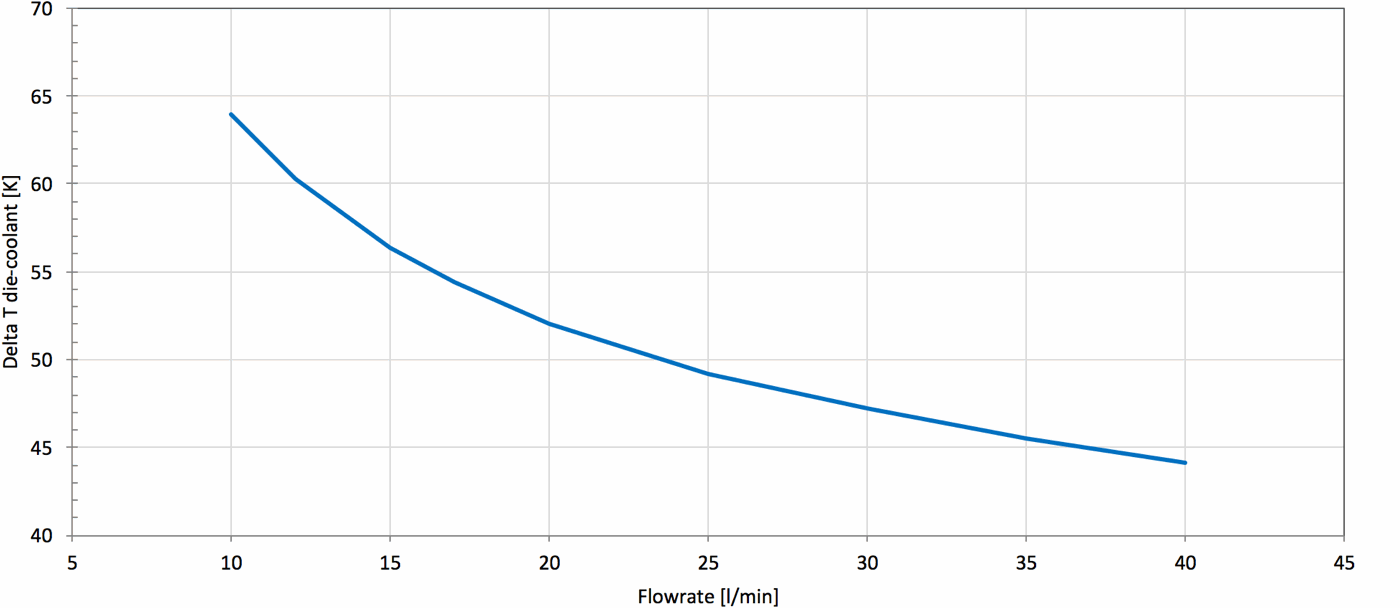

Characteristic Curve Temperature Flow Rate

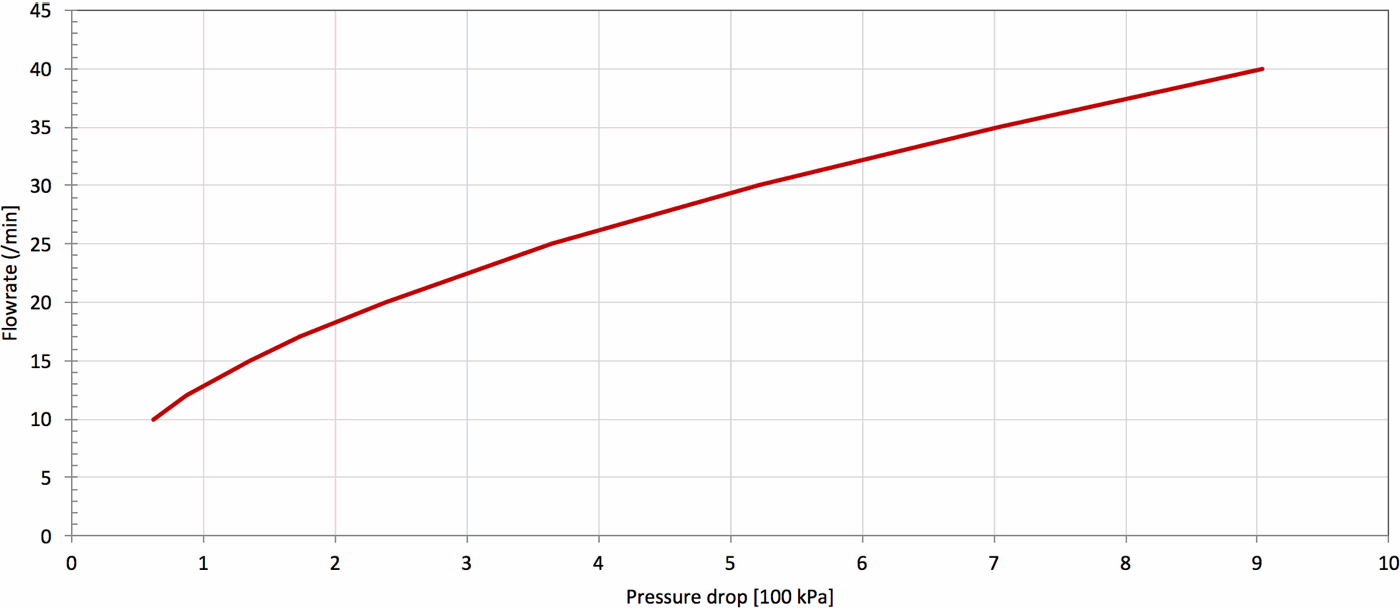

Characteristic Curve Temperature Flow Rate Pressure Drop
