Tubular and SMT Fuse Bodies for Device Protection Fuses
Silicate Ceramics in Fuse Technology
Silicate ceramic fuse bodies perform key functions in electrical fuses: electrical insulation, mechanical stability, and high temperature resistance. CeramTec manufactures precision tubular and SMT components from silicate ceramics as well as the high-performance material Ziralit.

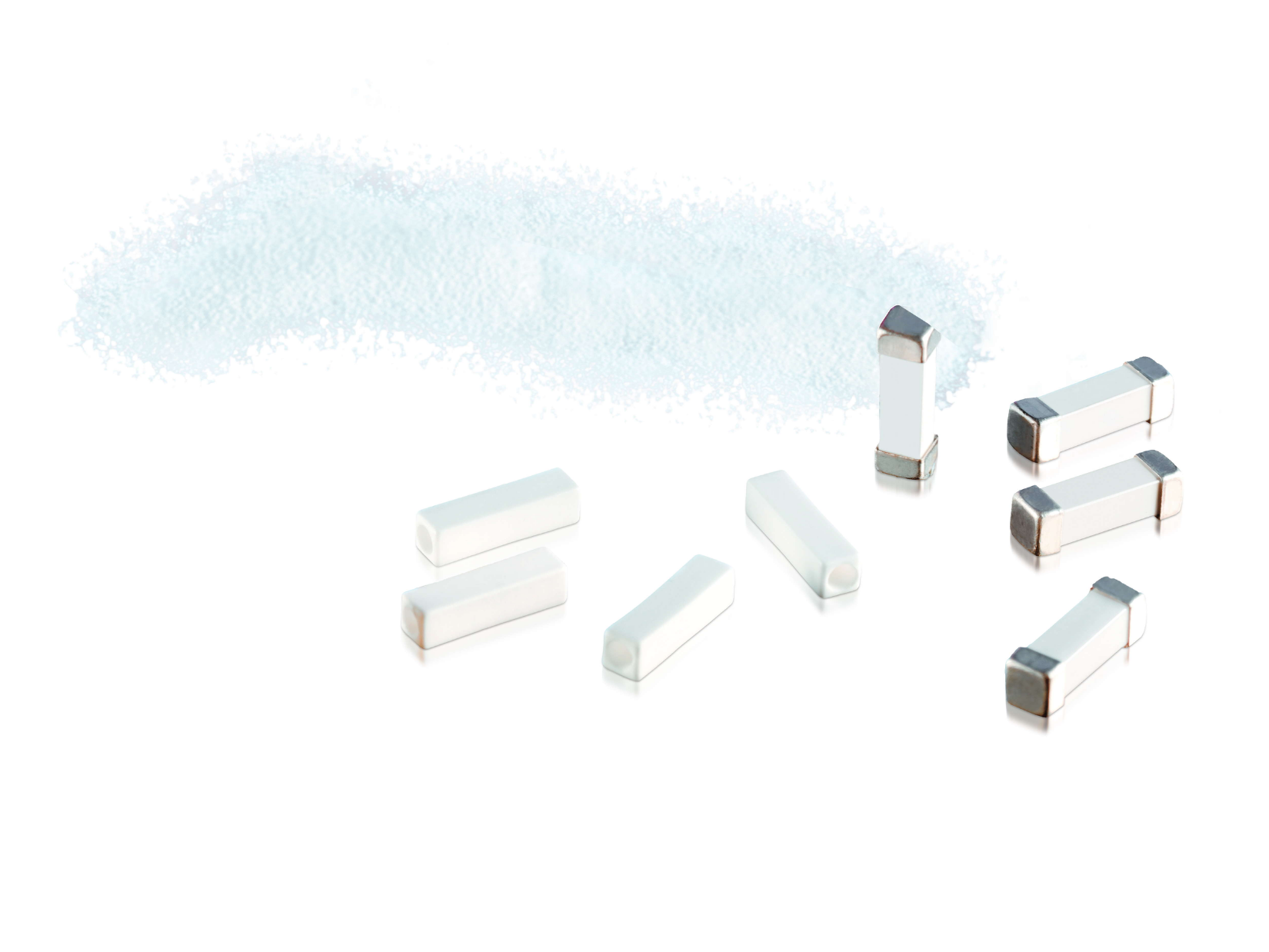

Ziralit is a zirconium oxide-reinforced aluminum oxide for applications with elevated thermal and mechanical requirements.
- Very high mechanical load capacity and temperature resistance
- Tight tolerances for high-volume production
- Excellent flexural strength and dielectric strength
For projects of appropriate size and volume, we also support our customers in the targeted further development of materials, in order to optimally adapt components to specific requirements.
CeramTec Materials for Fuse Bodies and Insulaters
Silicate- and Oxid-Ceramic Elements for Fuses
| Oxide Ceramics | Silicate Ceramics | ||||
| Ziralit (CeramTec Best Performer) | TEP-C (A12) | A14 | Rubalit IS95, Rubalit A1999,7 | Sikor S | Frequenta |
| ZTA | C610 | C620 or C780 (Din EN 60 672) | C795 - C799 (Din EN 60 672) | C410 (Din EN 60 672) | C221 (Din EN 60 672) |
